YZ-5X Slit Lamp

Model No.︰YZ-5X
Brand Name︰TOWOO
Country of Origin︰China
Unit Price︰-
Minimum Order︰-
Share on:

 Total 20 Related Items
Prev1213141516Next

specifications︰Characteristics:
• Advanced converging stereoscopic microscope.

• 14mm Aperture provides broader and clearer field of view.
• Compact and flexible structure ensures the convenient use.

Specifications:

Microscope Type:Converging stereoscope

Objective Magnification:Two steps magnifications

Eye Piece:10x

Magnifications(Field of View):10x(φ22.5mm)、16x(φ14mm)

Pupil Distance:55mm~82mm

Diopter Adjustment:±6D

Slit Width: 0mm~14mm adjustable(slit is round when the slit width is 14mm)

Slit Height: 1mm~14mm adjustable

Slit Angle: 0°~180° adjustable

Diameter of Light Spot: Æ14mm、Æ9mm、Æ5.5mm、Æ0.3mm

Slit Inclination: None

Filter: Heat Absorption,Redfree,Cobalt Blue

Illumination Bulb: 6V20W Halogen Bulb

Input Voltage: AC220V±22 V;AC110V±11 V

Electrical Safety Standard: Conform to Standard IEC601-1,Class I,Type B

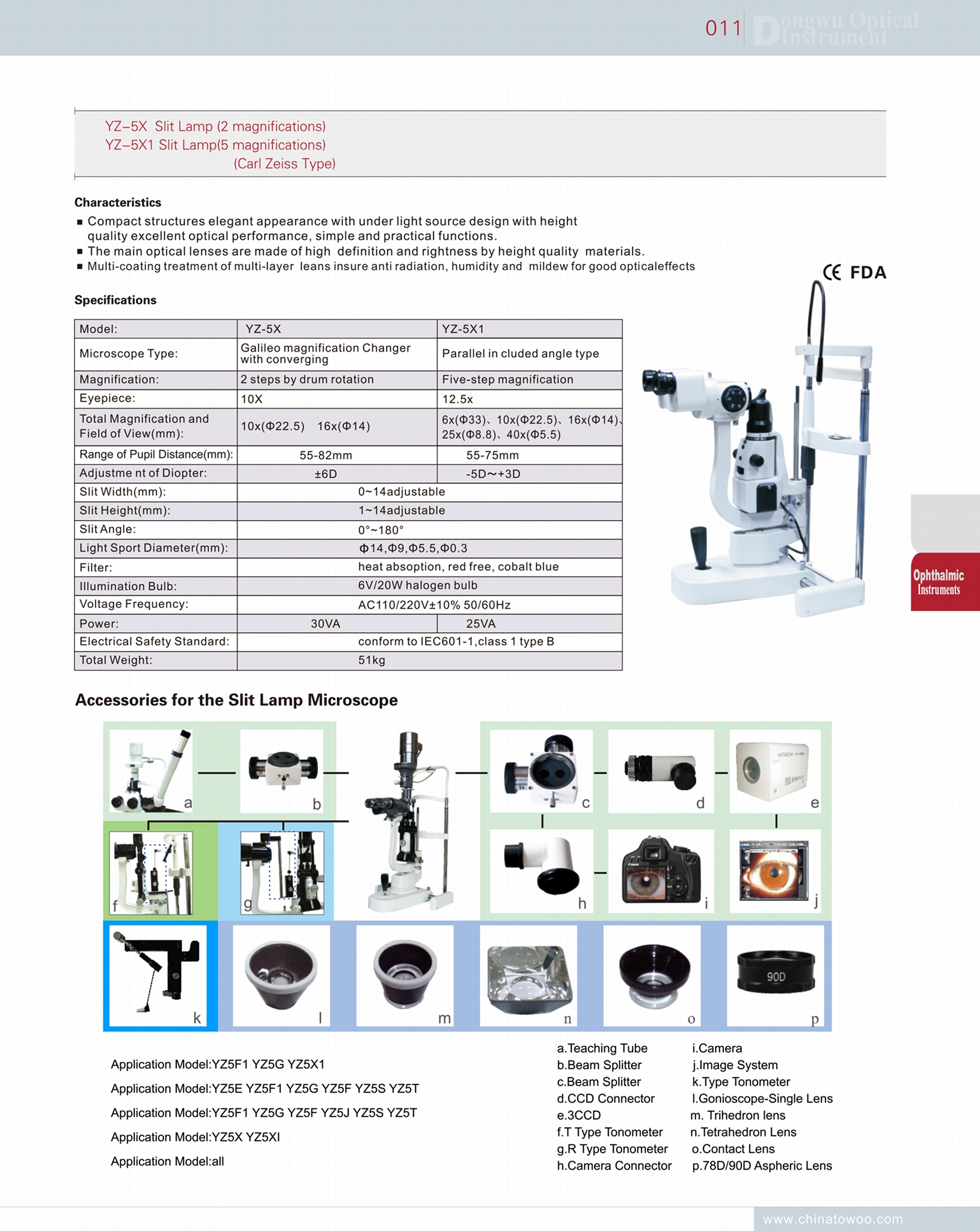

Product Image
